Digital Canon 20D

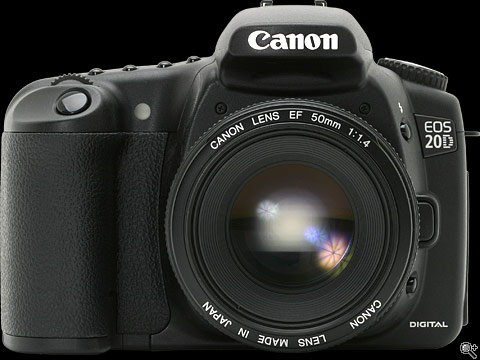

Canon Eos 20D

Example of Shoots by Giuseppe Repetto

List price (body only)	• US: $ 1,499 • EU: € 1,599
List price (with EF-S 18-55 DC)	• US: $ 1,599 • EU: € 1,699
Body material	Magnesium alloy
Sensor	• 22.5 x 15.0 mm CMOS sensor * • RGB Color Filter Array • Built-in fixed low-pass filter • 8.5 million total pixels * • 8.2 million effective pixels * • 3:2 aspect ratio
Image processor	DIGIC II *
Image sizes	• 3504 x 2336 (8.2 MP) * • 2544 x 1696 (4.3 MP) * • 1728 x 1152 (2.0 MP) *
File formats	• RAW • JPEG (EXIF 2.21) - Fine / Normal • RAW + JPEG (separate files) *
Color space *	• sRGB • Adobe RGB
Lenses	• Canon EF / EF-S lens mount * • 1.6x field of view crop
Focusing	• 9-point TTL * • CMOS sensor • AF working range: -0.5 - 18 EV (at 20°C, ISO 100) *
Focus modes	• AI Focus AF • One shot AF • AI Servo AF • Manual focus
AF point selection	• Auto • Manual • Home position
AF assist	• Stroboscopic flash • 4.0 m range (at center)
Metering	• TTL 35 zone SPC • Metering range: EV 1.0 - 20 EV (at 20°C, ISO 100, 50 mm F1.4)
Metering modes	• Evaluative 35 zone • Partial (9% at center) • Center-weighted average • Metering range: 1 - 20 EV (at 20°C, ISO 100)
AE lock	• Auto: One Shot AF with evaluative metering • Manual: AE lock button
AE bracketing	• +/- 2.0 EV • 0.3 or 0.5 EV increments
Exposure compen.	• +/-2.0 EV • 0.3 or 0.5 EV increments
Sensitivity	• Auto (100, 200 or 400) • ISO 100 • ISO 200 • ISO 400 • ISO 800 • ISO 1600 • ISO 3200 (Enhanced H)
Shutter	• Focal-plane shutter • 30 - 1/8000 sec * • 0.3 or 0.5 EV increments • Flash X-Sync: 1/250 sec • Bulb
Aperture values	• F1.0 - F91 • 0.3 or 0.5 EV increments • Actual aperture range depends on lens used
White balance	• Auto (3000 - 7000 K) • Daylight (5200 K) • Shade (7000 K) • Cloudy (6000 K) • Tungsten (3200 K) • Fluorescent (4000 K) • Flash (6000 K) • Custom (2000 - 10000 K) • Kelvin (2800 - 10000 K in 100 K steps)
WB bracketing	• +/-3 levels • 3 images • blue/amber or magenta/green bias
WB shift	• Blue (-9) To Amber (+9) • Magenta (-9) to Green (+9)
Processing params	• Parameter 1 (con +1, shp +1, sat +1, tone 0) * • Parameter 2 (con 0, shp 0, sat 0, tone 0) * • Set 1 (con, shp, sat, tone) • Set 2 (con, shp, sat, tone) • Set 3 (con, shp, sat, tone) • B&W (con, shp, filter, toning) *
Custom params (Set 1 - 3)	• Contrast (+/-2) • Sharpness (+/-2) • Saturation (+/-2) • Color tone (+/-2)
Viewfinder	• Eye-level pentaprism • 95% frame coverage • Magnification: 0.9x (-1 diopter with 50 mm lens at infinity) * • Eyepoint: 20 mm • Dioptric adjustment: -3.0 to +1.0 diopter • Precision matte screen
Viewfinder info	• AF points • Focus confirmation light • Shutter speed • Aperture • Manual exposure • AE Lock • Exposure compensation amount • AEB level • Partial metering area • Flash ready • Red-eye reduction lamp on • High-speed sync • FE Lock • Flash compensation amount • Warnings • Maximum burst for continuous shooting • Buffer space
LCD monitor	• 1.8" TFT LCD • 118,000 pixels • 5 brightness levels • 10x zoom playback
Record review	• Off • On (histogram via INFO button) * • 2 / 4 / 8 sec / Hold
Flash	• Auto pop-up E-TTL II auto flash • FOV coverage up to 17 mm (27 mm equiv.) * • Guide number approx 13 • Flash compensation +/-2.0 EV in 0.3 or 0.5 EV increments • X-Sync: 1/250 sec *
External flash	• E-TTL II auto flash with EX-series Speedlites * • Wireless multi-flash support • PC Sync
Shooting modes	• Auto • Program AE (P) • Shutter priority AE (Tv) • Aperture priority AE (Av) • Manual (M) • Auto depth-of-field • Portrait • Landscape • Close-up • Sports • Night portrait • Flash off
Drive modes	• Single • Continuous: 5 fps up to 23 frames * • Self-timer: 10 secs
Direct printing	• Canon Card Photo Printers • Canon Bubble Jet Printers with direct print function • PictBridge *
Other features	• Orientation sensor • Automatically writes FAT16/FAT32 depending on capacity • LCD panel illumination
Auto rotation	• On (playback uses orientation data in file header) • Off
Playback mode	• Single image • Single image with info (inc. histogram) • Magnified view (1.5 - 10x in 15 steps, browsable) • 9 image index • Auto play • Image rotation • Jump
Custom functions	18 custom functions with 50 settings *
Menu languages	• English • French • German • Spanish • Italian • Dutch • Swedish • Norwegian • Danish • Finnish • Chinese • Japanese
Firmware	User upgradable
Portrait grip	Via BP-E2 battery grip (option)
Connectivity	• USB 2.0 Hi-Speed * • Video out • N3 type wired remote control • PC Sync flash terminal
Storage	• Compact Flash Type I or II • Microdrive supported • FAT 12/16 and FAT 32 support • No CF card supplied
Power	• Lithium-Ion BP-511A rechargeable battery (supplied & charger) • Supports BP-511 / BP-511A / BP-512 / BP-514 • CR2016 Lithium battery (date/time backup) • Optional AC adapter
Dimensions	144 x 106 x 72 mm (5.6 x 4.2 x 2.8 in) *
Weight (no batt)	685 g (1.5 lb) *
Weight (inc. batt)	770 g (1.7 lb) *

links

http://web.canon.jp/Imaging/eos20d/

SAMPLE IMAGES

Canon Eos 20D + 18/55 EFS

Particular in real size 100%

Real size 100%

CANON 20D Vs 10D

CANON EOS 20 D Vs CANON EOS 10D Back

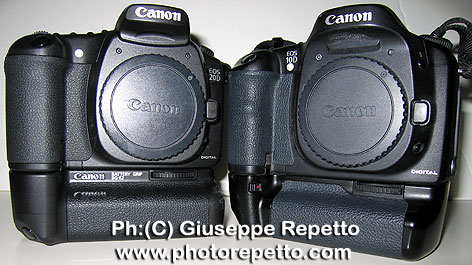

CANON EOS 20 D Vs CANON EOS 10D Front

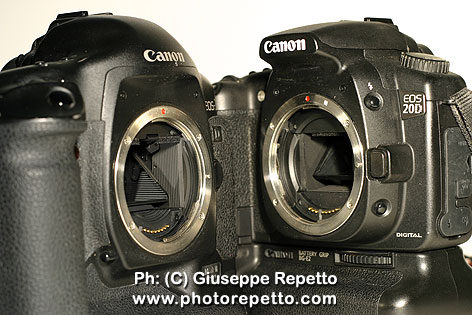

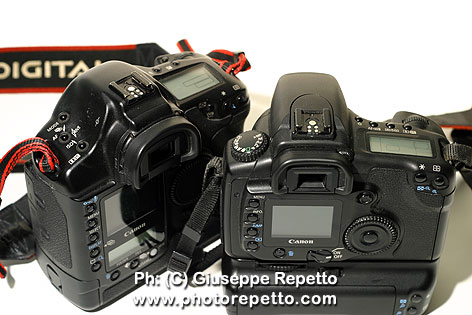

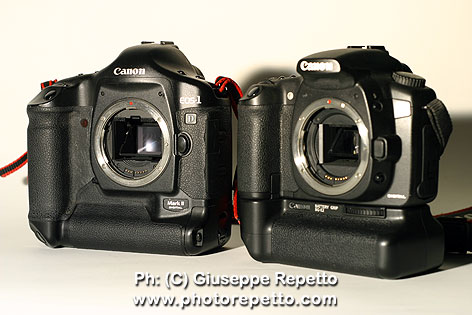

CANON EOS 1D MARK 2 Vs CANON EOS 20D

Coming soon - images to comparison

CANON EOS 20D SPORT SETTING

Menu screen

Quality	RAW+Large JPEG(top one)
Shoot w/out card	Off
Color Space	Adobe RGB
Parameters	2 (centered levels)
Auto-Rotate	On
LCD Brightness	Do NOT base your exposure on the screen brightness. Please use a hand-held meter or read your histogram.
Date/Time	Set the proper info so that your images are tagged with the correct date and time.
File numbering	Continuous

Helpful hints

Sensor dust	Turn the camera off when changing lenses. If the sensor is charged, it will pick up more dust. Also, clean the back of your lenses before mounting. To clean your sensor, use the "sensor cleaning" option in the menu to lock up the mirror with an un-charged sensor. Then use a blower bulb to gently clean. NEVER use dust-off.
White balance	For the most accurate balance, use custom WB by shooting a white card, selecting that image in the "custom WB" menu option, and then setting your white balance to "custom." Your white card setting will ONLY be used when you shoot on the "custom" setting.
New in the 20D	The on/off switch has a third position to take the place of the command dial on/off switch. If you put the main on/off switch in the top position, it locks the command dial.

Custom Functions

01	0 - The set button (in the middle of the back dial) does nothing when shooting
02	1 - Turns on noise reduction for long exposures
03	1 - Locks 1/250 sync in Av mode
04	1 - Set focus to back button (use 0 if you prefer to focus with the shutter)
05	2 - Only fire AF assist light when using external flash
06	0 - 1/3 stop exposure increments
07	0 - Affects built-in flash when in program mode
08	0 - Turns off ISO expansion (3200)
09	0 - Auto bracketing sequence
10	0 - Focus point lights up in viewfinder
11	1 - When hitting menu button, it defaults to the previous selected menu item. We suggest leaving this on FORMAT so you can reformat quickly every time you put a new card in the camera
12	0 - Setting this to 1 locks up the mirror
13	1 - Allows focus point selection using the multi-selector (the little joystick on the back)
14	0 - E-TTL II flash mode
15	0 - 1st curtain flash sync
16	0 - Disables safety shift in Av or Tv mode
17	0 - Sets black button on front of long lenses to AF stop
18	0 - Used only for data verification kit
