List price
(body only) |
• US: $ 2,699
• EU: € 2,499
• UK: £ 2,299 |
List price
(EF 24-105 L kit) |
• US: $ 3,499
• EU: € 3,299
• UK: £ 3,049 |
| Body material |
Magnesium alloy |
| Sensor * |
• 36 x 24 mm CMOS sensor
• Full 35 mm size frame
• RGB Color Filter Array
• Built-in fixed low-pass filter (with
self-cleaning unit)
• 22.0 million total pixels
• 21.1 million effective pixels
• 3:2 aspect ratio |
| Lenses |
• Canon EF lens mount (does not support EF-S
lenses)

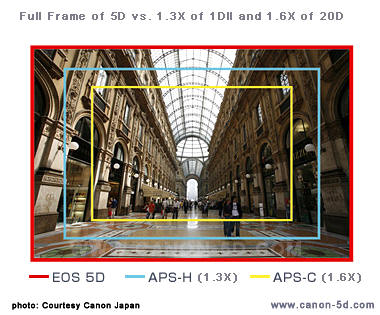

• No field of view crop (1.0x) |
| Dust reduction |
• "EOS Integrated Cleaning System"
• Self-cleaning sensor unit (filter in front of
sensor vibrates at high frequency at start-up
and shutdown - can be disabled)
• Dust Delete Data - Data from a test shot is
used to 'map' dust spots and can be later
removed using Canon DPP Software |
| Image processor *
|
DIGIC 4 |
| A/D conversion |
14 bit |
| Image sizes (JPEG) *
|
• 5616 x 3744 (21.0
MP)
• 4080 x 2720 (11.1 MP)
• 2784 x 1856 (5.2 MP) |
| Image sizes (RAW) *
|
• 5616 x 3744 (21.0
MP)
• 3861 x 2574 (10.0 MP)
• 2784 x 1856 (5.2 MP) |
| File formats * |
• RAW (.CR2; 14-bit)
• JPEG (EXIF 2.21) - Fine / Normal
• RAW + JPEG (separate files)
• sRAW1, sRAW2 (see
above) *
|
| Auto focus |
• 9-point TTL CMOS sensor
• 6 "Invisible Assist AF points"
• Centre point cross type F5.6 or faster
• Center point additionally sensitive with
lenses of F2.8 or faster
• AF working range: -0.5 - 18 EV (at 23°C, ISO
100) |
| Focus modes |
• One shot AF
• AI Servo AF
• AI Focus AF
• Manual focus |
| AF micro adjustment * |
• Adjust all lenses by same amount
(effectively body adjustment)
• Adjust up to 20 lenses individually |
| AF point selection |
• Auto
• Manual |
| Predictive AF |
• As close as 8 m (with 300 mm F2.8L lens at
50 kph) |
| AF assist |
No (only with external flash) |
| Metering |
• TTL full aperture metering 35 zone SPC
• Metering range: 1.0 - 20 EV |
| Metering modes |
• Evaluative 35 zone (linked to any AF
point)
• Partial (8% at center)
• Spot metering (approx. 3.5% at center)
• Center-weighted average |
| AE lock |
• Auto: One Shot AF with evaluative metering
• Manual: AE lock button |
| Exposure compensation |
• +/-2.0 EV
• 0.3 or 0.5 EV increments |
| Exposure bracketing |
• +/- 2.0 EV
• 0.3 or 0.5 EV increments |
| Sensitivity * |
• ISO 100 - 6400
• 0.3 or 1.0 EV increments
• Auto ISO (100-3200)
• Expansion options:
 ISO
50 (L1)
ISO
12800 (H1)
 ISO
25600 (H2) |
| Shutter |
• Focal-plane shutter
• 150,000 exposure durability
• 30 - 1/8000 sec
• 0.3 or 0.5 EV increments
• Flash X-Sync: 1/200 sec
• Bulb |
| Aperture values |
• F1.0 - F91
• 0.3 or 0.5 EV increments
• Actual aperture range depends on lens used |
| White balance |
• Auto
• Daylight
• Shade
• Cloudy
• Tungsten
• Fluorescent
• Flash
• Custom
• Kelvin (2500 - 10000 K in 100 K steps) |
| WB bracketing |
• +/-3 levels
• 3 images
• Blue / Amber or Magenta / Green bias
|
| WB shift |
• Blue (-9) To Amber (+9)
• Magenta (-9) to Green (+9) |
| Picture style |
• Standard
• Portrait
• Landscape
• Neutral
• Faithful
• Monochrome
• User def. 1
• User def. 2
• User def. 3 |
| Custom image parameters |
• Sharpness: 0 to 7
• Contrast: -4 to +4
• Saturation: -4 to +4
• Color tone: -4 to +4
• B&W filter: N, Ye, Or, R, G
• B&W tone: N, S, B, P, G |
| Image processing options
* |
• Highlight tone priority
• Auto lighting optimizer (4 settings)
• Long exposure noise reduction
• High ISO noise reduction (4 settings)
• Auto correction of lens peripheral
illumination (vignetting)
|
| Color space |
• sRGB
• Adobe RGB |
| Viewfinder * |
• Eye-level pentaprism
• 98% frame coverage
• Magnification: 0.71x (-1 diopter with 50 mm
lens at infinity)
• Eyepoint: Approx. 21 mm
• Interchangeable focusing screen (3 other types
optional)
• Dioptric adjustment: -3.0 to +1.0 diopter |
| Mirror |
• Quick-return half mirror
(transmission:reflection ratio 40:60)
• Mirror lock-up (once or multiple exposures)
|
| Viewfinder info * |
• AF information:
AF
points
Focus
confirmation light
• Exposure information:
Shutter
speed
Aperture
value
ISO
speed (always displayed)
AE
lock
Exposure
level/compensation
Spot
metering circle
Exposure
warning
AEB
• Flash information:
Flash
ready
High-speed
sync
FE
lock
Flash
exposure compensation
• Image information:
White
balance correction
CF
card information
Monochrome
shooting
Maximum
burst (2 digit display)
Highlight
tone priority (D+) |
| LCD monitor *
|
• 3.0 " TFT LCD
• 920,000 pixels
• Automatic 3 level brightness adjustment plus 7
manual levels
• 170 ° viewing angle
• Dual anti-reflection ('Clear View') |
| LCD Live view * |
• Live TTL display of scene from CMOS image
sensor
• 100% frame coverage
• 30 fps
• Real-time evaluative metering using CMOS image
sensor
• Best view or exposure simulation
• Silent mode
• Grid optional (x2)
• Magnify optional (5x or 10x at AF point)
• Three AF modes - Live mode / Quick mode / Face
Detection
• Live histogram (Luminance or RGB)
• Remote live view using EOS Utility 2.0 (via
USB or WiFi/Ethernet using WFT) |
| Movie recording * |
• Available optionally during Live view mode
• 1920 x 1080 (16:9) up to 12 mins (Quicktime
1080p H.264; 38.6 Mbits/sec)
• 640 x 480 (4:3) up to 24 mins (Quicktime 480p
H.264; 17.3 Mbits/sec)
• Max file size 4 GB
• Quicktime MOV format (H.264 video, PCM sound)
• 30 fps
|
| Record review |
• Off
• On (histogram via INFO button)
• Display mode same as last used Play mode
• 2 / 4 / 8 sec / Hold |
| Playback modes |
1. Single image with exposure, file number,
storage slot
2. As 1 but also image count and quality
3. Detailed exposure information, thumbnail and
luminance histogram
4. Less detailed exposure info., thumbnail,
luminance and RGB histograms
|
| Playback features |
• Optional blinking highlight alert
• Optional AF point display
• Magnified view (up to 10x)
• 2x2 or 3x3 thumbnail index
• Jump (by 1, 10, 100 images, screen, date,
folder, movies, stills)*
• Delete / Protect |
| Flash |
• No built-in flash unit
• E-TTL II auto flash / metered manual
• Flash compensation +/-2.0 EV in 0.3 or 0.5 EV
increments
• X-Sync: 1/200 sec
• Hot-shoe & PC Terminal |
| External flash |
• E-TTL II auto flash with EX-series
Speedlites
• In-camera flash configuration (currently only
580 EX II)
• Wireless multi-flash support
• PC Sync |
| Shooting modes |
• Auto
• Creative Auto *
• Program AE (P)
• Shutter priority AE (Tv)
• Aperture priority AE (Av)
• Manual (M)
• Custom 1
• Custom 2 *
• Custom 3 *
|
| Drive modes |
• Single
• Continuous: 3.9 fps *
• Self-timer: 2 or 10 sec (2 sec with mirror
lock-up) |
| Burst buffer |
• Large/Fine JPEG: 78 frames (310 with UDMA
card) *
• RAW: 13 frames * |
| Orientation sensor |
Yes |
| Auto rotation |
• On (recorded and LCD display)
• On (recorded only)
• Off |
| Custom functions *
|
25 custom functions with 71 settings in 4
groups |
| Menu languages *
|
• 25 Languages
• English, German, French, Dutch, Danish,
Portuguese, Finnish, Italian, Norwegian, Swedish,
Spanish, Greek, Russian, Polish, Czech,
Hungarian, Romanian, Ukrainian, Turkish, Arabic,
Thai, Simplified Chinese, Traditional Chinese,
Korean and Japanese |
| Firmware |
User upgradable |
| Portrait grip |
• Optional WFT-E4 (WiFi / LAN / USB mass
storage)
• Optional BG-E6 battery grip |
| Connectivity * |
• USB 2.0 Hi-Speed
• AV out (video & audio *)
• HDMI connector *
• Microphone input *
• PC Sync flash terminal
• Communication terminal on base for WFT-E4
• InfraRed * |
| Storage * |
• Compact Flash Type I or II (inc. FAT32)
• Supports UDMA cards *
• Copyright metatag support
• Canon Original Data Security Kit supported ("Original
Image Data") |
| Power * |
• Lithium-Ion LP-E6 rechargeable battery (supplied
& charger)
• CR1616 for date & settings
• Approx. 850 shots at 20°C
• Battery indication 6 levels & percentage (memorized) |
| Dimensions * |
152 x 114 x 75 mm (6.0 x 4.5 x 2.9 in) |
| Weight *
|
• No battery: 810 g (1.8 lb) |
| Accessories |
• Viewfinder: Eyecup Eb, E-series Dioptric
Adjustment Lens with Rubber Frame Eb, Eyepiece
Extender EP-EX15, Focusing Screens Eg, Angle
Finder C
• Wireless File Transmitter WFT-E4
• Battery Grip BG-E6
• All EF lenses (excludes EF-S lenses)
• Canon Speedlites (220EX, 380EX, 420EX, 430EX,
430EX II, 550EX, 580EX, 580EX II,
Macro-Ring-Lite, MR-14EX, Macro Twin Lite
MT-24EX, Speedlite Transmitter ST-E2)
• Remote control with N3 type contact, Wireless
Controller LC-5, Remote Controller RC-1, Remote
Controller RC-5
• Original Data Security Kit OSK-E3 |
