| Body material |
Magnesium alloy |
| Sensor
* |
• 22.3 x 14.9 mm CMOS sensor
• RGB Color Filter Array
• Built-in fixed low-pass filter (with
self-cleaning unit)
• 19 million total pixels
• 18 million effective pixels
• 3:2 aspect ratio |
| Image processor
* |
Dual DIGIC 4 |
| A/D conversion |
14 bit |
| Image Sizes ( Still)
* |
RAW
• 5184 x 3456
• 3888 x 2592
• 2592 x 1728
JPEG
• 5184 x 3456
• 3456 x 2304
• 2592 x 1728 |
| Image Sizes
(Movie) |
1920 x 1080 (29.97, 25, 23.976 fps)
1280 x 720 (59.94, 50 fps)
640 x 480 (59.94, 50 fps) |
| File
formats (Still) |
• JPEG (EXIF 2.21) - Fine / Normal
• RAW
• M-RAW
• S-RAW
• RAW + JPEG
• M-RAW + JPEG
• S-RAW + JPEG |
| File formats (Movie) |
MOV (Video: H.264, Sound: Linear
PCM) |
| Lenses |
• Canon EF / EF-S lens mount
• 1.6x field of view crop |

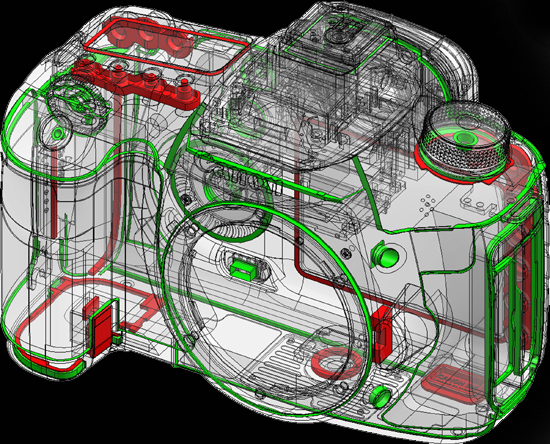

| Dust reduction |
• EOS integrated cleaning system
with fluorine coating
• Self-cleaning sensor unit (filter in
front of sensor vibrates at high
frequency at start-up and shutdown - can
be disabled)
• Dust Delete Data - Data from a test
shot is used to 'map' dust spots and can
be later removed using Canon DPP
Software
|
| Auto focus* |
• TTL-CT-SIR CMOS sensor
• 19 cross-type AF points (f/2.8 at
centre)
• Center point additionally sensitive
with lenses of F2.8 or faster
• AF working range: -0.5 - 18 EV (at
23°C, ISO 100) |
| Focus modes |
• One shot AF
• AI Servo AF
• AI Focus AF
• Manual focus |
| AF point selection |
• Auto : 19 point
• Manual : Single point/ Spot/ AF point
Expansion/ Zone |
| AF Lock |
Locked when shutter button is
pressed half way in One Shot AF mode or
AF-ON button is pressed |
| Predictive AF |
• Up to 8 m |
| AF assist |
• Stroboscopic flash |
| AF microadjust |
• +/- 20 steps
• Adjust all lenses by same amount/individually
adjust up to 20 lenses |
| Metering* |
• TTL full aperture metering with 63
zone Dual Layer SPC
• Metering range: EV 1 - 20 EV |
| Metering modes* |
• Evaluative metering (linked to all
AF points)
• Partial (9.4% at center)
• Spot metering (approx. 2.3% at center)
• Center-weighted average |
| AE lock |
• Auto: One Shot AF with evaluative
metering
• Manual: AE lock button |
| Exposure compensation* |
• +/-5.0 EV
• 0.3 or 0.5 EV increments |
| Exposure bracketing |
• +/- 2.0 EV
• 0.3 or 0.5 EV increments |
| Sensitivity
* |
• Auto ISO (100-3200)
• ISO 100-6400 in 0.3 or 1.0 EV
increments
• H (12800) expansion |
| Shutter |
• Focal-plane shutter
• 30 - 1/8000 sec
• 0.3 or 0.5 EV increments
• Flash X-Sync: 1/250 sec
• Bulb |
| Aperture values |
• 0.3 or 0.5 EV increments
• Actual aperture range depends on lens
used |
| White balance |
• Auto
• Daylight
• Shade
• Cloudy
• Tungsten
• White Fluorescent light
• Flash
• Custom
• Kelvin (2500 - 10000 K in 100 K steps) |
| WB bracketing |
• +/-3 levels
• 3 images
• Blue / Amber or Magenta / Green bias
|
| WB shift |
• Blue (-9) To Amber (+9)
• Magenta (-9) to Green (+9) |
| Picture style |
• Standard
• Portrait
• Landscape
• Neutral
• Faithful
• Monochrome
• User def. 1
• User def. 2
• User def. 3 |
| Custom image parameters |
• Sharpness: 0 to 7
• Contrast: -4 to +4
• Saturation: -4 to +4
• Color tone: -4 to +4
• B&W filter: N, Ye, Or, R, Gvan
• B&W tone: N, S, B, P, G |
| Image processing |
• Highlight tone priority
• Auto lighting optimizer (4 settings)
• Long exposure noise reduction
• High ISO noise reduction (4 settings)
• Auto correction of lens peripheral
illumination (vignetting)
|
| Color space |
• sRGB
• Adobe RGB |
| Viewfinder
* |
• Eye-level pentaprism
• 100% frame coverage
• Approx. 1.0x maginification
• Eyepoint: 22 mm
• Fixed (Transmissive LCD screen)
• Dioptric adjustment: -3.0 to +1.0
diopter |
| Mirror |
• Quick-return half mirror (transmission:reflection
ratio 40:60)
• Mirror lock-up (once or multiple
exposures) |
| Viewfinder
info * |
• AF points
• Focus confirmation light
• Shutter speed
• Aperture value
• ISO speed (always displayed)
• AE lock
• Exposure level/compensation
• Spot metering circle
• Exposure warning
• AEB.
• Flash ready
• High-speed sync
• FE lock
• Flash exposure compensation
• Red-eye reduction light
• White balance correction
• CF card information
• Monochrome shooting
• Maximum burst (2 digit display)
• Highlight tone priority (D+)
• Grid
• Dual Axis Electronic level |

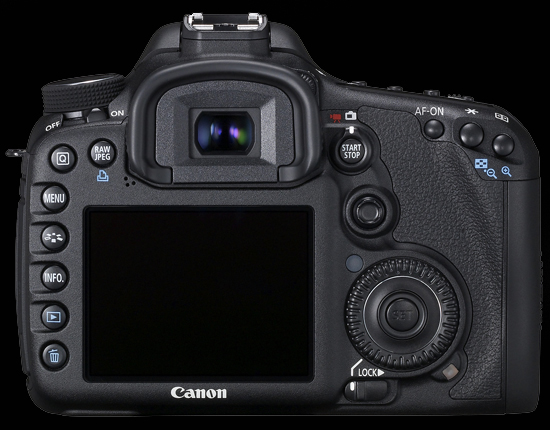

| LCD monitor |
• 3.0 " TFT LCD
• 920,000 pixels
• 100% coverage
• 160 ° viewing angle
• Coating : Anti-reflection and Solid
Structure |
| LCD Live view |
• Live TTL display of scene from
CMOS image sensor
• 100% frame coverage
• 30 fps frame rate
• Real-time evaluative metering using
CMOS image sensor
• Best view or exposure simulation
• Silent mode
• Grid optional (x2)
• Magnify optional (5x or 10x at AF
point)
• Three AF modes - Live mode/Quick
mode/Face Detection
• Histogram
• Remote live view using EOS Utility 2.0
(via USB or WiFi/Ethernet using WFT)
|
| Record review |
• Off
• On (histogram via INFO button)
• Display mode same as last used Play
mode |
| Playback modes |
1. Single image with exposure, file
number, storage slot
2. As 1 but also image count and quality
3. Detailed exposure information,
thumbnail and luminance histogram
4. Less detailed exposure info.,
thumbnail, luminance and RGB histograms
|
| Playback features |
• Optional blinking highlight alert
• Optional AF point display
• Magnified view (up to 1.5x - 10x)
• 2x2 or 3x3 thumbnail index
• Delete / Protect |
| Flash* |
• Auto pop-up E-TTL II auto flash
• FOV coverage up to15 mm (27 mm equiv.)
• Guide number approx 12 m (ISO 100)
• Cycle time approx. 3 sec
• Flash compensation +/-3.0 EV in 0.3 or
0.5 EV increments
• X-Sync: 1/250 sec |
| External flash |
• E-TTL II auto flash with EX-series
Speedlites
• Wireless multi-flash support
• PC Sync |
| Shooting modes
* |
• Auto
• Creative auto
• Program AE (P)
• Shutter priority AE (Tv)
• Aperture priority AE (Av)
• Manual (M) Stills and Movie
• Custom settings 1
• Custom settings 2
• Custom settings 3
|
| Drive modes |
• Single
• High-speed continuous
• Low-speed continuous
• Self-timer: 2sec + remote, 10sec +
remote |
| Burst buffer
* |
Approx. 8 fps (speed maintained for
up to 126 JPEGs (with UDMA card), 15
images (RAW)) |
| Orientation sensor
|
Yes |
| Auto rotation |
• On (recorded and LCD display)
• On (recorded only)
• Off |
| Custom functions
* |
27 Custom Fubctions with 70 settings |
| Menu languages |
• English
• German
• French
• Dutch
• Danish
• Portuguese
• Finnish
• Italian
• Norwegian
• Swedish
• Spanish
• Greek
• Russian
• Polish
• Czech
• Hungarian
• Romanian
• Ukrainian
• Turkish
• Arabic
• Thai
• Simplified Chinese
• Traditional Chinese
• Korean
• Japanese |
| Firmware |
User upgradable |
| Portrait grip |
• Optional BG-E7 Battery Grip
• Optional WFT-E5 Wireless File Transfer
Grip |
| Connectivity |
• USB 2.0 Hi-Speed
• Video output (PAL/ NTSC)
• HDMI connector
• N3 type wired remote control
• PC Sync flash terminal
• External microphone (Stereo mini jack)
• Communication terminal on base for
WFT-E5 |
| Storage |
• Compact Flash Type I or II
• Supports UDMA and Microdrive cards
• External storage via optional WFT-E5 |
| Power |
• Lithium-Ion LP-E6 rechargeable
battery (supplied & charger)
• CR1616 Lithium battery (date/time
backup)
• Optional AC adapter |
Wireless connectivity
(optional WFT-E5) |
• Mounts on base of camera and also
acts as vertical grip
• Has its own BP-511A battery
• Wireless 802.11b / 802.11g
• Wireless security: WEP, TKIP/AES,
WPA-PSK, WPA2-PSK
• Wireless methods: Infrastructure or Ad
Hoc
• Wired ethernet (100 Base-TX)
• Transfer: FTP, PTP (remote control by
computer), HTTP (view / remote fire)
• USB host capable: External hard drives,
flash drives
• USB comms: GPS devices (records
coordinates and altitude in image header)
|
| Dimensions |
148 x 111 x 74 mm (5.8 x 4.3 x 2.8
in) |
| Weight
*
|
• No
battery: 820 g (1.8 lb) |
